10 Series - Conventional

Platform Rating
10,000 lbs.
Platform Length
19’ – 22‘
Tow Rating
7,500 lbs.

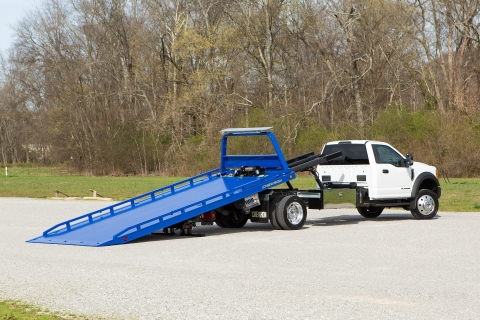

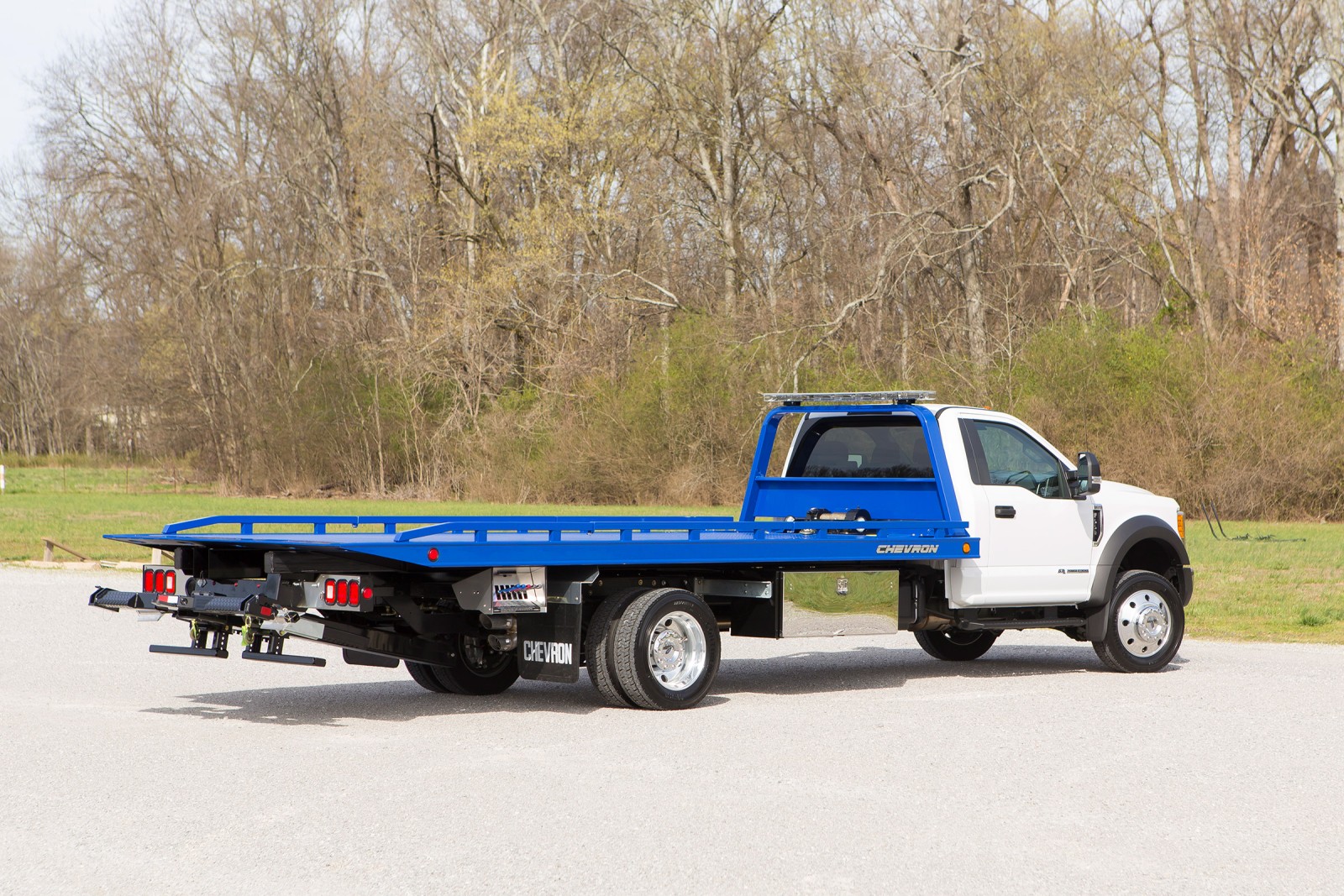

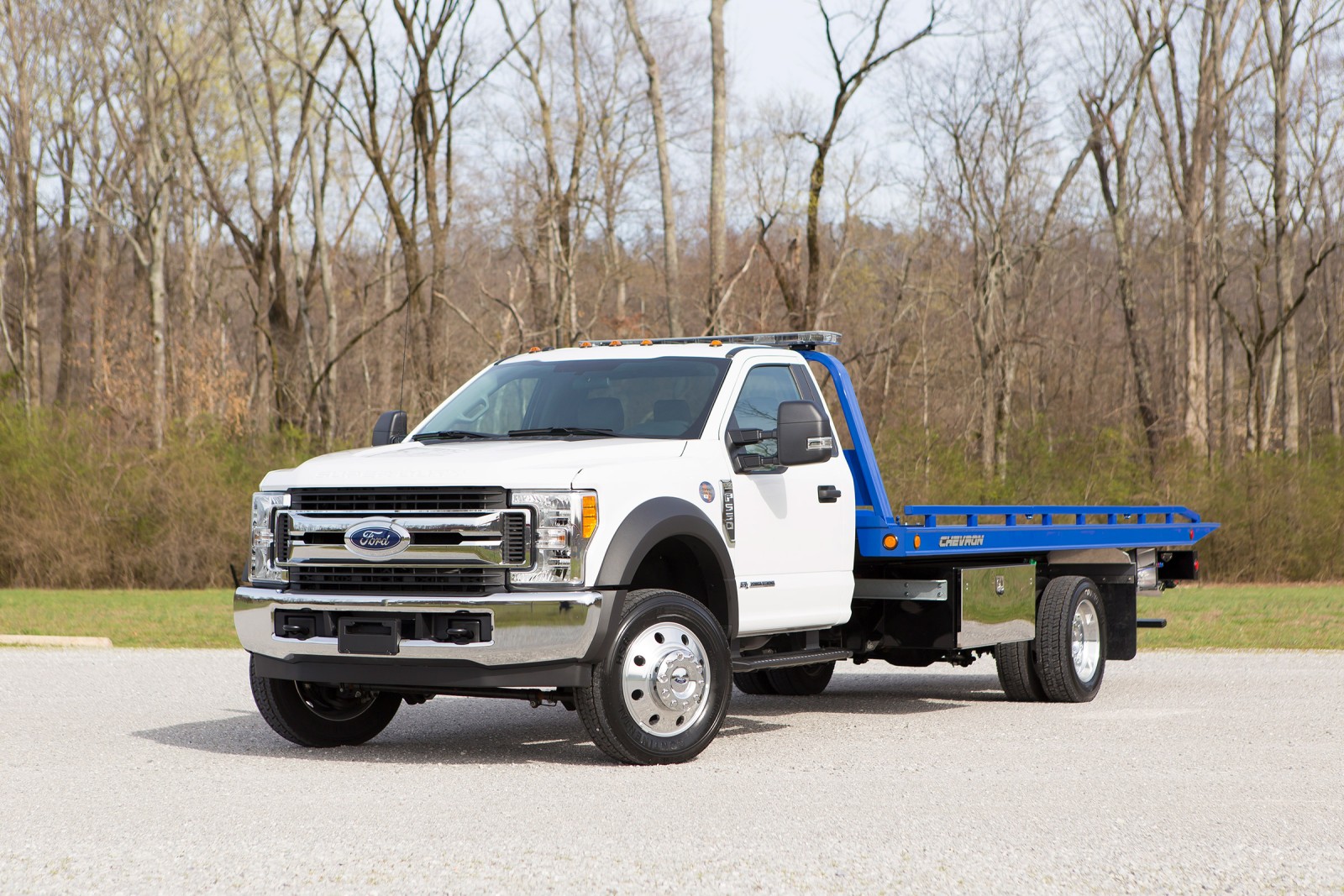

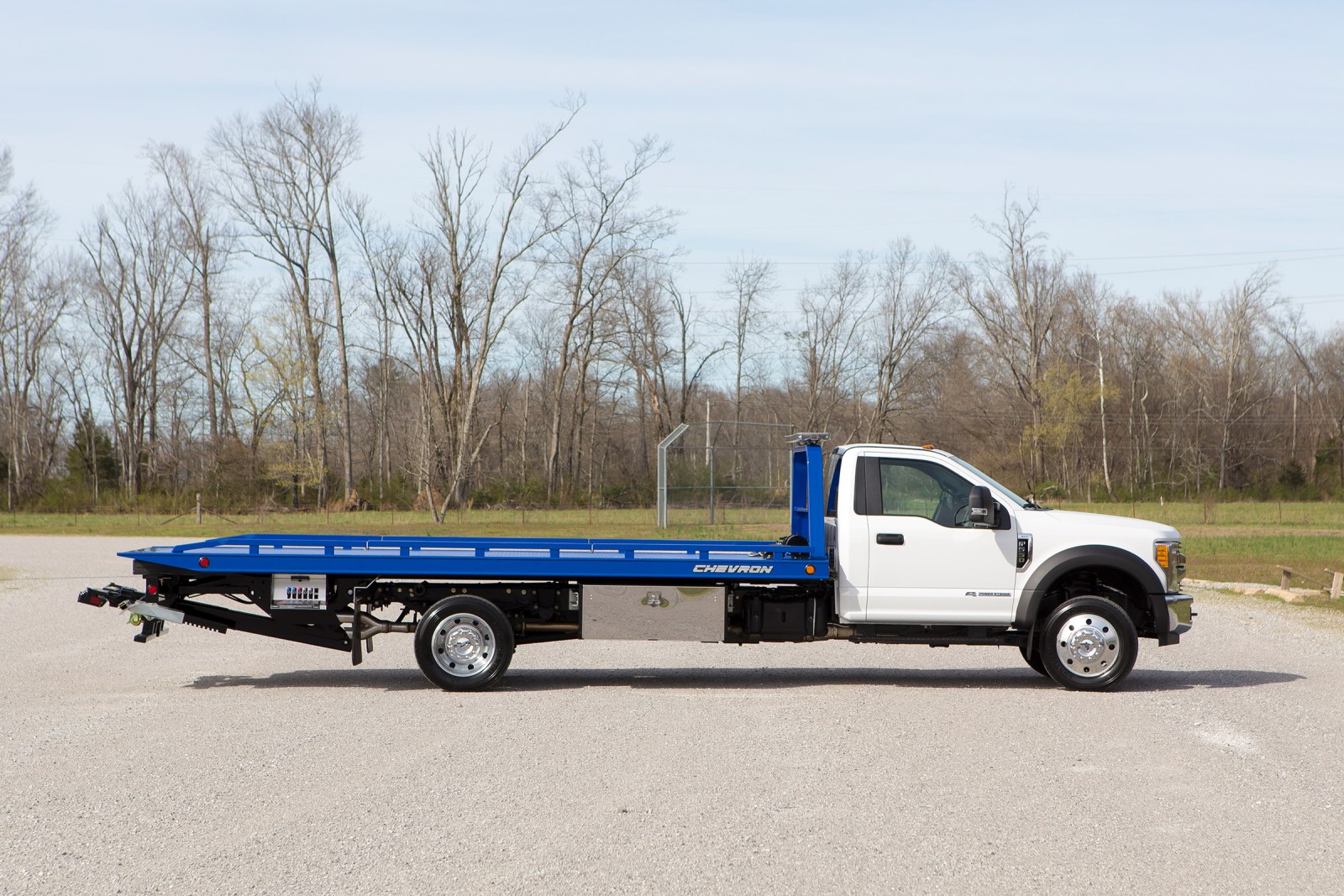

10 Series - Conventional Gallery

See all 10 photos

We feel that “Keeping up with the Industry” is nothing but an excuse. If we can't produce a product that is superior to everything in it's class then… you won't see our names on it.

Our Car Carriers are a perfect case-in-point. They possess every standard feature that you would expect from a World Leader, brought together in a sleek, attractive and durable package. With an independent wheel lift system, positive lock down, extra-low loading angle, and easy one-man operation, Century, Vulcan, and Chevron Carriers have driven past every limitation that has held "The Industry" in check.

Features

Standard

  • Platform Available in Aluminum or Steel
  • Floor Level Sides w/ Stake Pockets (Steel)
  • Bi-Hollow Tube Rails (Aluminum)
  • Subframe Length 210” (19’-19.5’); 230” (20’-22’)
  • Right & Left Chain Trays
  • Safety Chains (2 Front, 2 Rear)
  • Painted in Black Acrylic Urethane (Steel Only)
  • Left & Right Side Illuminated Controls
  • Federal Standard #108 LED Lighting
  • 8,000 lb Hydraulic Winch w/ 50’ Cable
  • Full Function Wheel Lift System
  • Slide-In L-Arms w/ Anti-Theft Storage
  • Pre-Wired Electrical Junction Box
  • Back-Up Lights & Alarm
  • Adjustable Rear Stabilizer
  • 6-Spool Capable Control Station
  • Lubrication Fittings on All Pivot Points
  • Bed Built 96” Wide
  • 11 Key Slot Package (Steel)
  • 6 Key Slot Package (Aluminum)
  • Slide Pads
  • Bed Anti-Tilt Lockout
  • Roller Bed Positive Lock-Down
  • Two Lift Cylinders
  • One Extension Cylinder
  • Manual Shift Winch Clutch Release
  • Cable Tensioner
  • Cable Roller Guide
  • Tow Light Socket
  • Hydraulic Pump
  • Mud Flaps
  • 2 Position House Lock with Indicators

Optional

  • Frame-Mounted Pylon (Requires 6” or 12” Additional CA depending on size of pylon base)
  • Bed-Mounted Cab Protector
  • Right Approach™ or Extreme Angle Option
  • Smooth Floor in lieu of Tread Plate (Steel)
  • Color on Top of Deck & Side Rails (Steel)
  • Various Side Rail Options Available
  • Work Lights (Rear, Pylon, or Winch Mounted)
  • Combination Dock Stabilizer / Wheel Lift
  • Extendable Pintle Hitch
  • Solid Tube Side Rails (Steel, N/C))
  • Wireless Winch Remote
  • Steel or Aluminum Tool Compartments
  • Various Chain & Strap Assemblies
  • Multiple Winch Options
  • SST® Option
  • 9-Spool Control Station Capable
  • Air Shift Winch Clutch Release(s)
  • Bed Built 102” Wide
  • Galvanized Subframe
  • Wood Floor*
  • PTO
  • Switch Panel
  • Additional Lighting
  • Auto-Grip™ II Wheel Lift
  • 3-Way Pivot & Other Wheel Retainer Options
  • Additional Key Slots
  • Slidewinder - Side-Mounted Winch
  • Outboard Tilt Cylinders (Use outboard tilt cylinders to avoid midship fuel tanks or in-line exhaust)
  • Load Rite Gen II® Option
  • Additional Chain Locks

Specifications

Carrier

Load Rating* 10,000 lbs.
Platform Length 19’, 19.5’, 20.5', 21’, 21.5’, 22’
Platform Thickness 3/16”
Platform Width (Outside) 96”
Platform Width (Inside)** 91.5”
Crossmembers (Steel) 2” x 2” on 8” Centers
Crossmembers (Aluminum) 2” on 3 3/8” Centers
Winch (First Layer) 8,000 lbs.
Cable 3/8” x 50’
Wheel Lift Rating 3,000 lbs.
Tow Rating at Full Extension 7,500 lbs.

Cab to Axle (C.A.) Requirements

Carrier Length Tilt Method Clear C.A. Minimum Frame RBM
Frame-Mounted Headboard - Add 6” -
19’ OBT 120” 500,000 in/lbs.
19.5‘ OBT 120” – 126” 500,000 in/lbs.
20.5‘ IBT 132” 600,000 in/lbs.
21‘ IBT 138” 600,000 in/lbs.
21.5‘ IBT 144” 600,000 in/lbs.
22‘ IBT 150” 600,000 in/lbs.

*The outside frame rails of the chassis extending behind the cab must be free of fuel tanks, air tanks, battery boxes, exhaust stacks, etc.

Chassis Recommendations

Minimum GVWR 15,000 lbs.
Maximum GVWR 25,500 lbs.
Wheel Size 16” – 19.5”
Minimum Frame Height 31”
Maximum Frame Height 39”
Minimum Frame Length Behind Center of Rear Axle 36”
Wheel and Tire Size* 225/70R19.5

*The outside frame rails of the chassis extending behind the cab must be free of fuel tanks, air tanks, battery boxes, exhaust stacks, etc.

*Wheel and tire size for Ford F550, RAM 5500, Chevy 6500, and International CV.
For Ford F650, International MV, Freightliner M2, and Hino use 245/70R19.5 or 255/70R22.5 wheel and tire size.
